Interactive Digital Whiteboard Touch Screen Lcd For Classroom Education

Basic Information
Place of Origin: China
Brand Name: Yida
Certification: CE
Model Number: Whiteboard
Minimum Order Quantity: 1 set
Packaging Details: Carton/Plywooden Case
Delivery Time: 15~20 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 8000pcs/month
Screen Size: 65" 75" 86" Resolution: 3840*2160
Contrast Ratio: 4000:1 Brightness: 500cd/m2
Warranty: 1 Year Application: Education,Training,Office
Installation: Mobile/Wall-mounting
High Light:

Android 4.4 Interactive Digital Whiteboard

,

350cd/m2 Interactive Digital Whiteboard

,

130W Touch Screen Lcd Whiteboard

Interactive Digital Whiteboard Touch Screen for Classroom Education Conference



Features:
1. New A+ grade LCD panel from Samsung and LG
2. Super slim bezel design and stylish design
3.4K resolution and 178 degree full viewing angle
4. Infrared touch (IR touch) with 10 points touch and writing
5. High-grade metal cabinet
6. Strong protective glass on the surface, waterproof (some model do not have)
7. Android 4.4 OS dual-core CPU 8G RAM ,built-in Wi-Fi
8. Supports standard RJ45 cable network connection and wireless network connection
9. With USB/HDMI/RJ45/SD card
10. Various numbers of applications and games under Android OS supported

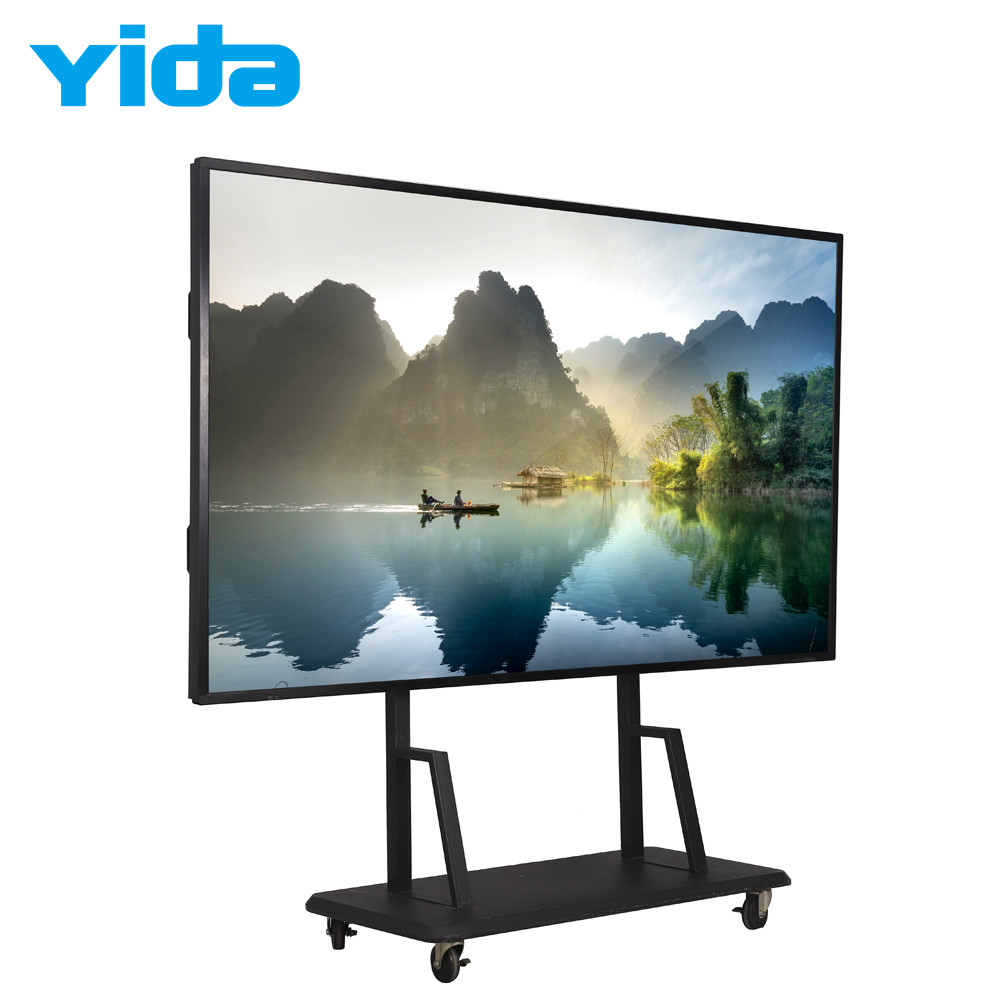

Interactive Digital Whiteboard Touch Screen Lcd For Classroom Education 0



Functions of Touch Screen Whiteboard:
1. Built-in Android/Windows system:system will recognize and catogory different file (audio,office files,pictures etc)
2. One button enter into energy-saving model or power on off or change signal source
3. Support OPS (optional) expand to optimize computer
4. Signal source intelligent identification,when signal input,equipment changed into related channel,no need to adjust manually
5. Black screen green energy saving function:one button turn off the backlight of LCD screen without turning off the power supply,click screen or press any button to wake up backlight,easy control
6. TV function
7. Can be used as advertising machine
8. Built-in audio
9. Interactive Whiteboard function: 10points IR touch ,easy to write and erase(wiping gesture), support 2 points zoom in/out,dragging.
10: Making notes:support to making notes and save as image,pdf file, scan QR code to share,good assistant for speaker. Saving and making meeting memo immediately.

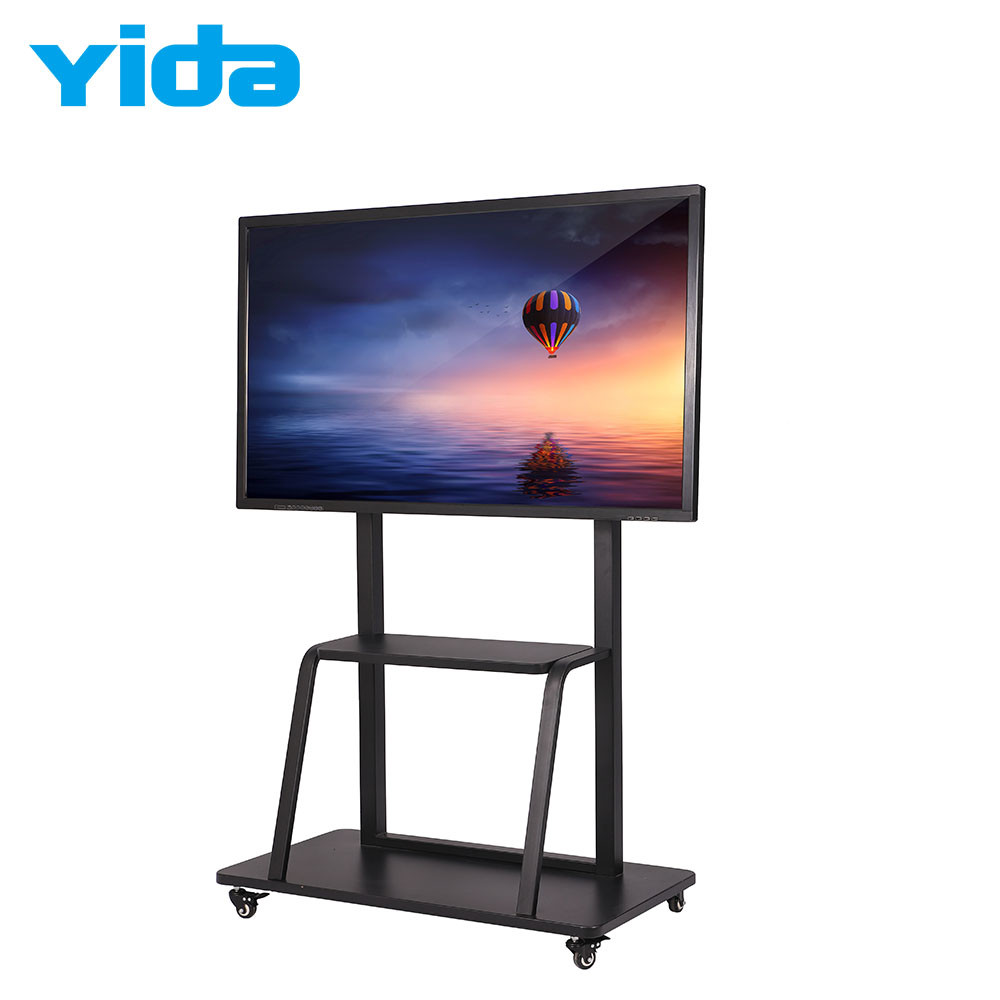

Interactive Digital Whiteboard Touch Screen Lcd For Classroom Education 1



Optional:
1. Available size: 65" 70" 75" 86" 98"touch screen kiosk,
2. Windows system: supports customized windows 8.1/10 OS
3. Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
4. Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror



Application of Digital Signage LCD Whiteboard

Specification of Digital Signage LCD Whiteboard

Specification Type Parameter
Panel LCD Size 75"
Light source LED backlight
Resolution 1920 x 1080pixels
Brightness 300cd/m²(typ.)
Contrast ration 1000:1(typ.)
Pixel pitch 0.63mm x 0.63mm
Frame rate 60Hz
Viewing Angle 178°(H)/178°(V)
Life 30,000hrs(min.)
Color saturability 68%
Visual area 1209.6 (H)mm x 680.4(V)mm
Color depth 16.7M
Android CPU Architecture 64 bit A53
Working frequency 1.2GHZ
Number of cores Dual-cores
RAM DDR3: 1G ; eMMC:8G
System Version 4.4.2
Power Voltage Rated 100-240V , Max. 90-264V~50/60Hz
Max. power consumption ≤130W
Standby power consumption <0.5W
Speaker 2 x 10W(max)
Power supply (AC) input 100-240V


LCD Advertising Displayer Input/Output Interface


Input
Interface
LAN In Interface 1
DP Interface 1
HDMI Interface 2
VGA Interface 1
PC-AUDIO Interface 1
YPBPR Interface MINI x 1
AV In Interface MINI x 1
USB2.0 1
USB3.0 1
TOUCH-USB USB2.0 x 1
Output
Interface
AV Out Interface MINI x 1
EARPHONE Interface 1
OPTICAL Interface 1
LAN Out Interface 1

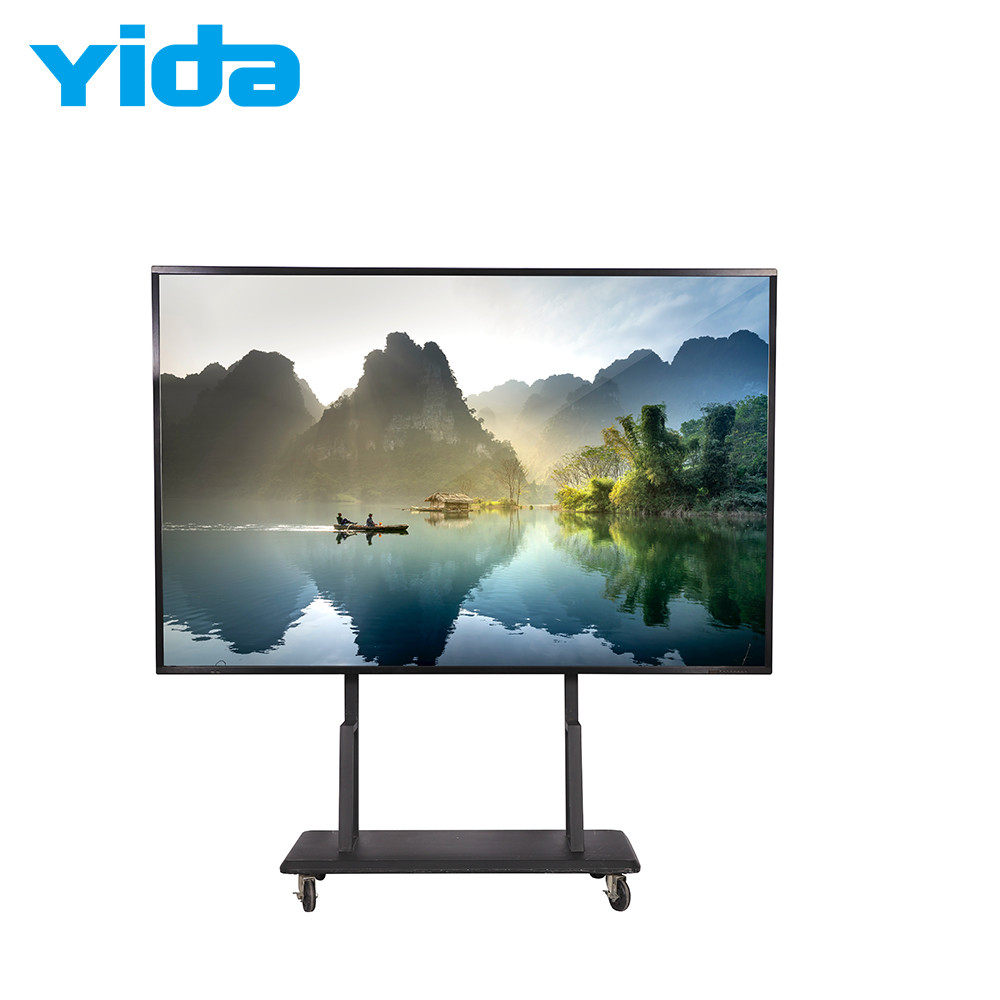

Interactive Digital Whiteboard Touch Screen Lcd For Classroom Education 2

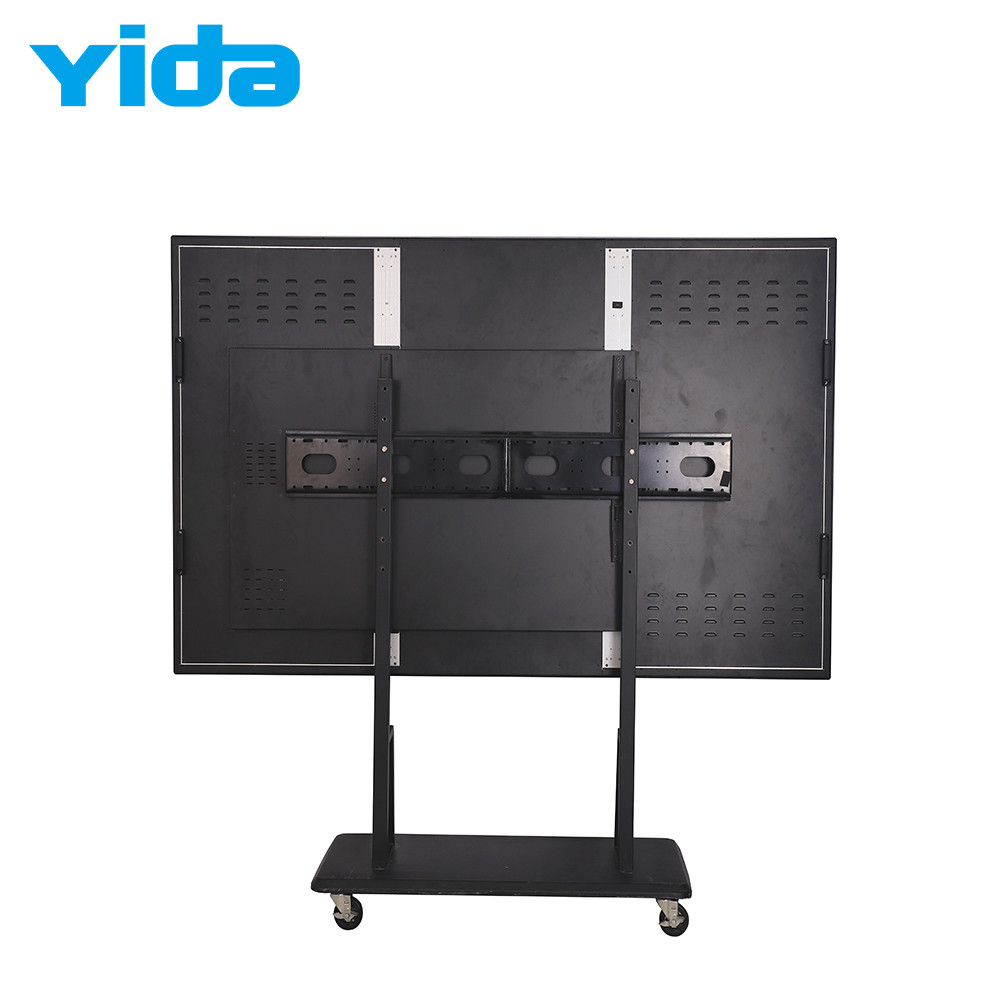

Interactive Digital Whiteboard Touch Screen Lcd For Classroom Education 3
