Original Samsung 2x2 46" Lcd Video Wall 1.7 Mm Bezel

Basic Information
Place of Origin: China
Brand Name: YDLCD
Certification: CE, RoHS, FCC
Model Number: YD-43/49/55/65
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs
Panel Brand: LG/BOE/Samsung OS: Windows Or Android
Response Time: 6ms CPU: I3, I5, I7
Bezel Width: 0.9mm 1.7mm 3.5mm Input Port: DVI, VGA, HDMI, Etc
Tempratured Glass: Yes Accessories: Cables, Cracket, Etc
High Light:

2x2 46" Lcd Video Wall

,

700cd/m2 Lcd Video Wall

,

1.7mm Bezel Video Wall Lcd Monitors

Original Samsung 2x2 46 Inch Lcd Video Wall With 1.7 mm Bezel





55inch LCD Video Wall Specs



Product Multi screen video wall

Screen





Size 46” 55”
Active Area/mm 1018.35H×572.5 V 1209.6H×680.4V
Dimensions/mm 1026H×580V 1217H ×689V
Bezel 3.9/5.5/6.7mm 5.3mm
Wide screen 16:9
Response time 8ms
Color 8 BIT 16.7M
Brightness 450cd/m2; 500cd/m2; 650cd/m2; 700cd/m2
Contrast Ratio 3000:1
Color temperature 10000K
Viewing Angle H:178° V:178°
Resolution 1920 x 1080(MAX) , 1365*768
Interface Input/output interface

DVI IN *1;VGA IN*1;VIDEO OUTVIDEO IN*1;

RS232 OUT*3;RS232 IN*1

Power Input voltage AC 90V~264V, 50/60, Universal, ± 10%
Power 198W (normal working state)
Power management VESA DPMS



Working Environment

Service life 50000 hours
Installing ways Cabinet type, wall mounted type, bracket type, building blocks type, embedded type, and mobile type
Language Chinese and English
Environmental friendly energy saving, eye protection, graph quality improvement
Glass plate anti-vertigo
Temperature Working: reflectivity ≤ 0.5%; storage: 0 ~ 50 ℃
Humidity Working: -20 to 70 ℃; storage: 20 ~ 80%
Pressure (working) 800 ~ 1114 hPa (altitude: 0 ~ 2000m)
storage 600 ~ 1114 hPa (altitude: 0 ~ 4500m)
Accessories

Distributor

Cables

Bracket

Management software

Wooden packaging

Instructions



55inch LCD Video Wall Description

1, product features: multi-screen splicing, unlimited scalability, to meet the big screen experience

2, product size: 46 inch, 49 inch, 55 inch

3, brand: Samsung, LG, BOE, Samsung;

4, Bezel width: 1.7 MM, 3.5MM

5. Support CF Card, SD card and USB Port.

6. Verity and complete software, stable and reliable
7. Time Schedule: Playlist supports download, playback and stop time for each group of network players to do scheduled functions, the player turns on/off at the same time everyday according to your setting

8. Fitted with high transparent tempered safety glass to protect the screen surface. 2mm to 8mm thickness available.



Advantages of Shenzhen Yida Technology Co., Ltd:

1. We not only high quality products, but also full package solutions, including installation design, free training on software, maintenance service, etc. For example, our panels are orginal ones from Samsung, LG, BOE, not small brand. After knowing actual installation location, we will make design for bracket which fix lcd panel on the wall;

Original Samsung 2x2 46" Lcd Video Wall 1.7 Mm Bezel 0





2. 24 hours after-sales service is reachable;



3. Smallest bezel 0.9mm, 1.7mm, 3.5mm available;



4.Accessories like hydraulic support available;



5.Before delivery 72 hours aging testing is conducted;

Original Samsung 2x2 46" Lcd Video Wall 1.7 Mm Bezel 1



6. Package with care(double packages: paper box plus wooden box)





Original Samsung 2x2 46" Lcd Video Wall 1.7 Mm Bezel 2

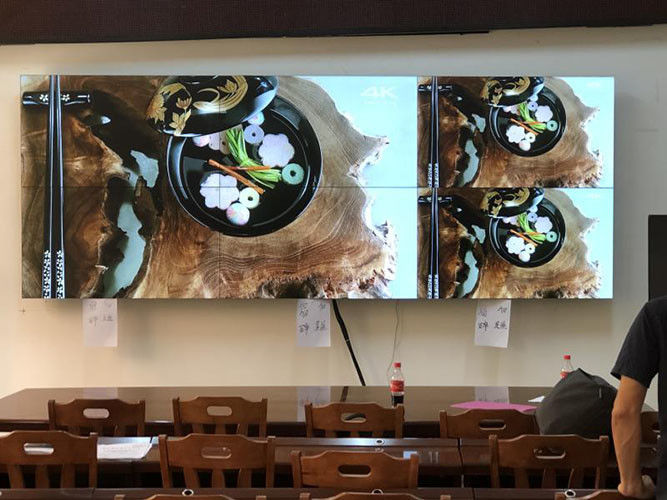

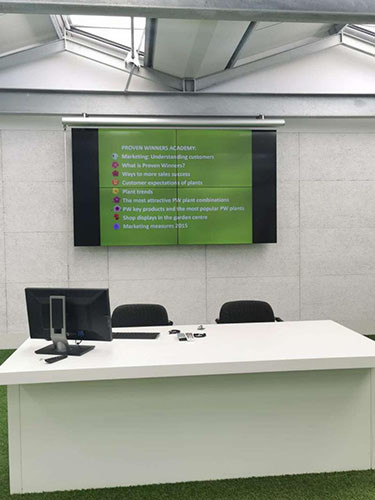

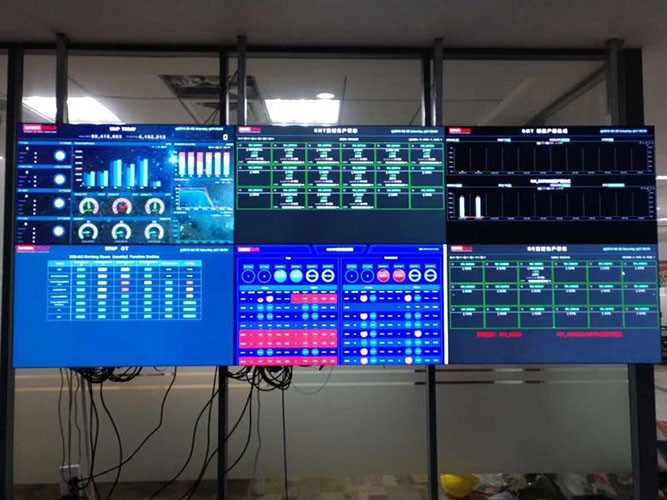

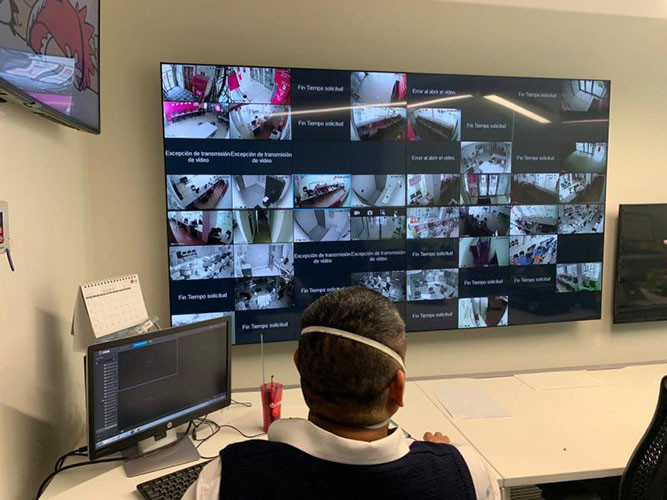

55 Inch Panel Lcd video wall application



Original Samsung 2x2 46" Lcd Video Wall 1.7 Mm Bezel 3
