| Place of Origin: | China |
|---|---|
| Brand Name: | YD |
| Certification: | CE, FCC, CCC |
| Model Number: | YD-43 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs |
| Panel Brand: | LG,Samsung, BOE | CPU: | RK3288, RK3688, RK3399 |
|---|---|---|---|
| Contrast Ratio: | 1300:1 | Brightness: | 500nits |
| Response Time: | 6ms | Viewing Angle: | 178 |
| High Light: | RK3399 Outdoor Lcd Digital Signage,285W Outdoor Lcd Digital Signage,500nits Wall Mounted Digital Signage |
||

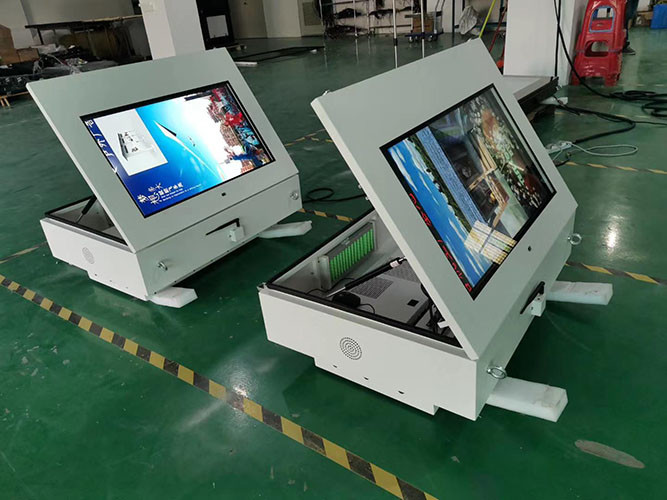

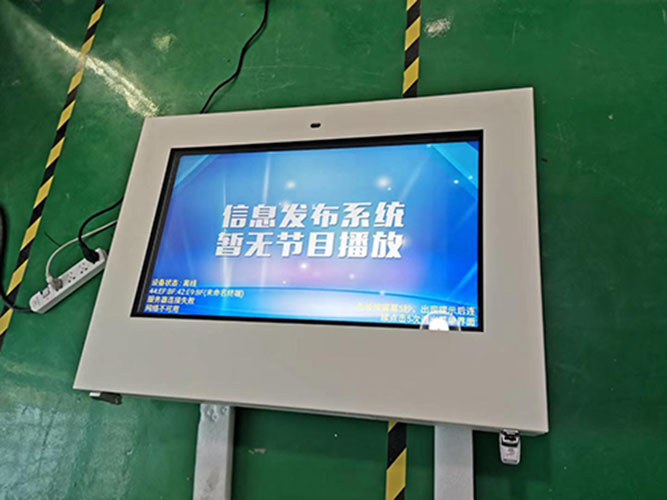

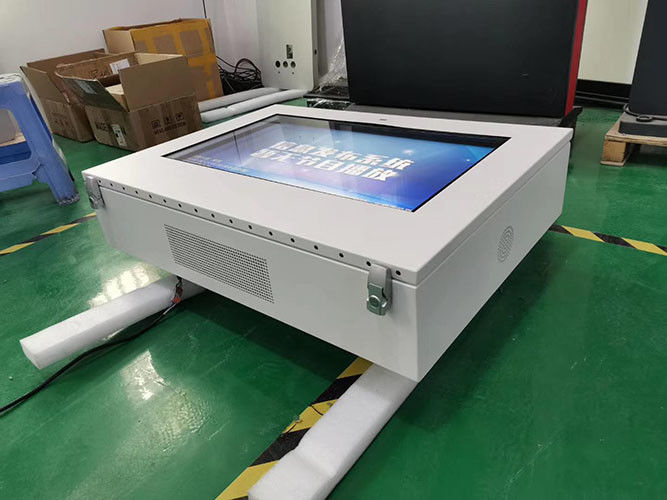

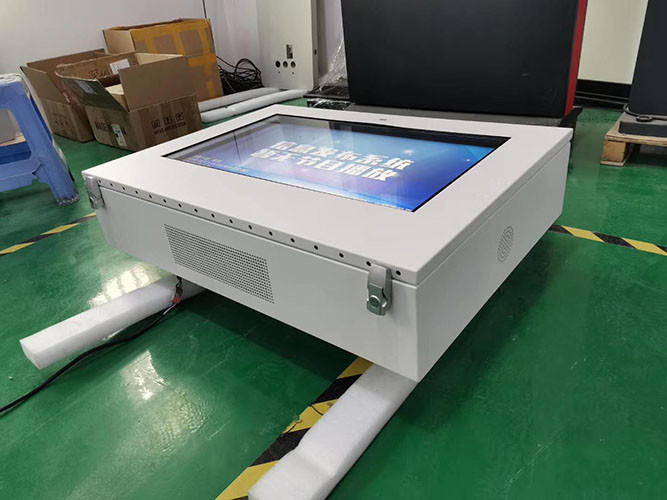

Water-proof 43 inch wall-mounted lcd digital signage for outdoor ads
43 inch wall-mounted lcd digital signage spcs
| Product Model | YD-32 | YD-43 | YD55 | YD-65 | |
| Highlight display | Screen size | 32inch | 43inch | 55inch | 65inch |
| Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | |
| Brightness nits | 1500 nit | 1500 nit | 2000 nit | 2000 nit | |
| Active area | 698*392mm | 945*533mm | 1209*680mm | 1428*803mm | |
| Viewing angle | 178°(H)/178°(V) | 178°(H)/178°(V) | 178°(H)/178°(V) | 178°(H)/178°(V) | |
| Brightness control | Automatic photosensitive | Automatic photosensitive | Automatic photosensitive | Automatic photosensitive | |
| Tractor parameter | Boundary dimension | 1700*600*220mm | 1950*730*220mm | 2100*890*220mm | 2300*1020*220mm |
| Cooling system | Intelligent direct air | Intelligent direct air | Intelligent direct air | Intelligent direct air | |
| power source | AC 208-240V/50Hz | AC 208-240V/50Hz | AC 208-240V/50Hz | AC 208-240V/50Hz | |
| The engine power | ≤200W | ≤285W | ≤380W | ≤500W | |
| Operating temperature | -30℃-50℃ | -30℃-50℃ | -30℃-50℃ | -30℃-50℃ | |
| operating humidity | 5%-90%RH | 5%-90%RH | 5%-90%RH | 5%-90%RH | |
| Waterproofing grade | IP55 | IP55 | IP55 | IP55 | |
| Weight | 150Kg | 180Kg | 220Kg | 260Kg | |
| Casing anticorrosion technology | Adopt galvanized sheet and spray special outdoor powder on the surface (outdoor anti-corrosion for more than 7 years). | ||||
| Optional configuration | broadcast system | computer mainboard and android motherboard | |||
| Network transmission | standalone version,WIFI,3G,4G | ||||
| Touch screen | 10 points capacitive touch, 10 points nano touch, capacitive screen | ||||
43 inch wall-mounted lcd digital signage features:
1. HD picture quality, resolution 1080x1,920P;
2. High definition tempered glass screen which is dustproof, waterproof, anti-vandal,
also suitable for extrem high or low temprature enviroment;
3. Intelligent split screen which can devide the whole screen into two or three parts according to display content;
4. Different size available;
