Indoor Splicing LCD Video Wall Seamless Multi Advertising Screen

Basic Information
Place of Origin: China
Brand Name: YD LCD
Certification: FCC,UL,ISO9001
Model Number: WM Series
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood Case with Foam Protect
Delivery Time: 8-10 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 units per week
Application: Indoor Contrast Ratio: 3000:1
Brightness: 450cd/Sqm Lifetime: 60000hours
High Light:

Splicing LCD Video Wall Seamless


Advertising Wall Mounted Digital Signage


Multi OSD Language LCD Video Wall

Splicing LCD Video Wall Price Seamless Multi Advertising Screen

Key specification:


Panel Size:
46 inch
Place of Origin:
Guangdong, China
Screen Type:
Product name:
LCD Video Wall
46 inch
WIFI / LAN / 3G / 4G Optional
OSD language:
Multi OSD Language
1920*1080 / 3840*2160
Metal Case



Technical Parameter:

Item 46"DID
Physical resolution 1920*1080(H×V)
brightness 500(cd/m² )
contrast 3000:1
View angel 178°(H) / 178°(V)
Screen ratio 16:9
Motion compensation technology AUTO MOVE
Filter 3D comb filtering DNR
Video starnard PAL,NTSC
Composite video input CVBS(BNC) ×1;
Composite video output CVBS(BNC) ×1;
Digital signal input HDMI×1; 1920*1080@60Hz downward compatibility
Computer signal input VGA(DB-6) ×1;1920*1080@60Hz upword compatibility
Digitalsignal input DVI(DVI-I)×1;1080P(1920*1080) downward compatibility
Computer centralized interface RS232
Mode of operation Computer centralized control
The average time between failures 60000 hours
Wide voltage design 100-240v
Power consumption 230w
The frame size 3.5mm
External dimension 1021.98mm×576.57mm×71.7mm(W×H×D)
The display area size 1018.8mm×572.87 mm (W×H)
Hole site installation 580×200(mm)(L×W)

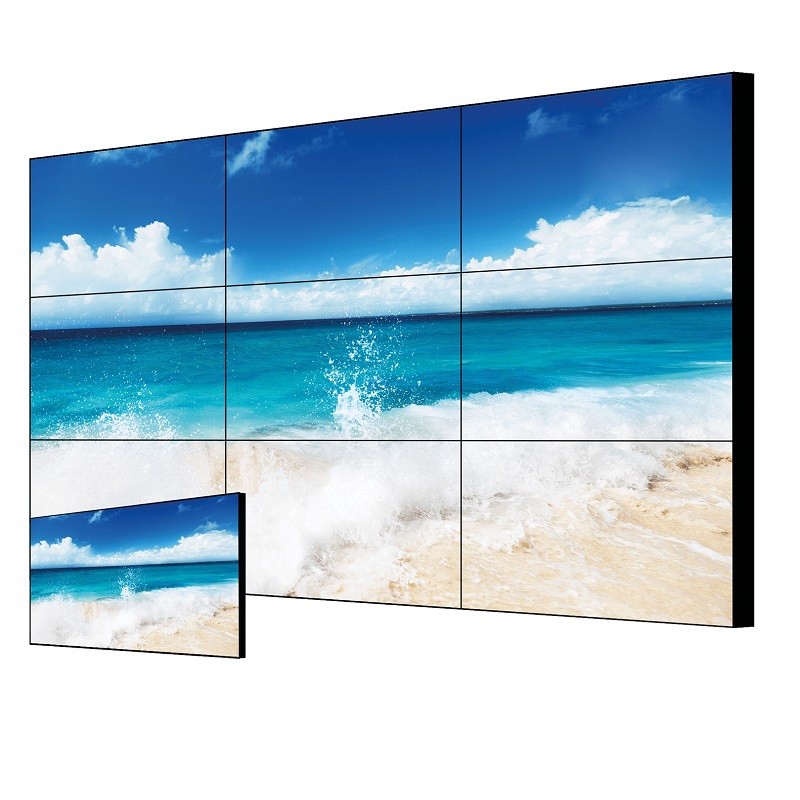

Indoor Splicing LCD Video Wall Seamless Multi Advertising Screen 0

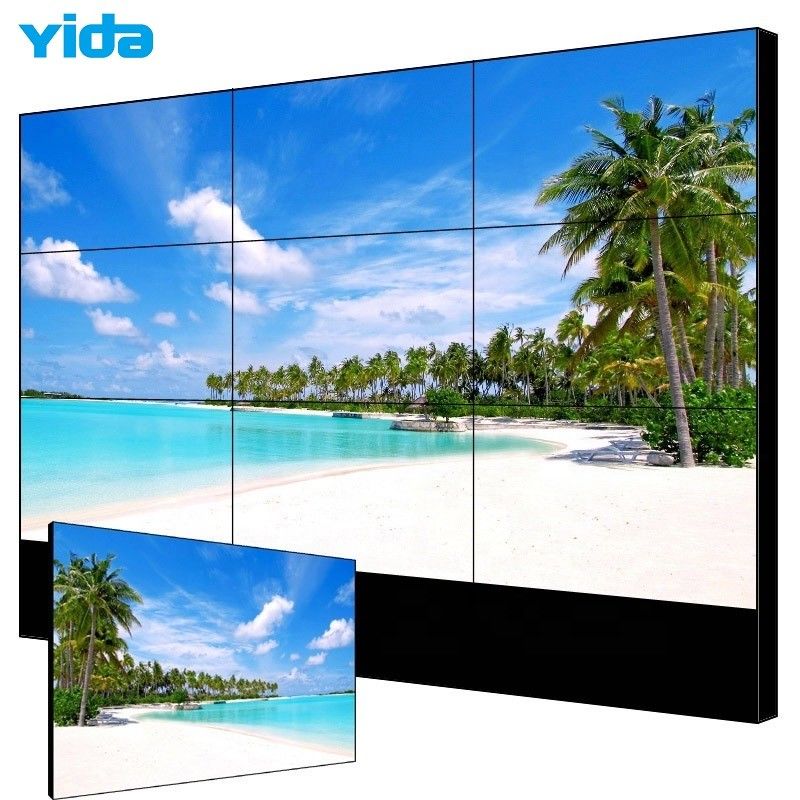

Indoor Splicing LCD Video Wall Seamless Multi Advertising Screen 1


Q1: Are you a factory or a trading company?
A: We are a OEM/ODM factory.

Q2: What payment methods does your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C, and Western Union.

Q3: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery.

Q4: What will you do if the product is nature damage within warranty time and how about out that time?
A: Well, we will give some quite simple questions to help us confirm the damaged part. Once it is confirmed, the free replacement will be sent. Also, we will just request a very low price for replacement part, if the product out of warranty time.

Q5: Do you give any discount?
A: I'll surely try my best to help you get those by the best price and good service at the same time.

Q6: Can I customize the product I ordered?
A: Absolutely yes, customization offer from customers are most welcome in our company.
