Seamless Small Bezel 46" 48" 50" 55" 1920x1080 DID LCD Video Wall For TV Station And Shop

Basic Information
Place of Origin: China
Brand Name: YD LCD
Certification: FCC,UL,ISO9001
Model Number: WM Series
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood Case with Foam Protect
Delivery Time: 8-10 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 units per week
Application: Indoor Contrast Ratio: 3000:1
Brightness: 450cd/Sqm Lifetime: 60000hours
High Light:

1920x1080 DID LCD Video Wall

,

Small Bezel LCD Video Wall 46"

,

Seamless TV Station LCD Video Wall

Yida Seamless small bezel 46" 48" 50" 55" 1920x1080 DID LCD Video Wall for TV Station and shop



Features:



HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.
Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
Stable performance,suitable working for a long time

Application:

The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public





Technical Parameter:

Panel Size 46" 49" 55" 65"
Panel Brand Samsung LG Samsung/LG Samsung
Pixel Pitch 0.53025*0.53025mm 0.55926*0.55926mm 0.63*0.63mm 0.372*0.372mm
Viewing Angle 178H/178V
Response Time <6ms
Display Color 8Bit,16.7M
Contrast Ratio 3500:1 1300:1 4500:1 4000:1
Connectivity /DVI/VGA/AV/RJ45/Audio/Display Port
Bezel Width 1.7mm/3.5mm 1.8mm/3.5mm

0.88mm/1.7mm/

1.8mm/3.5mm

3.5mm
Brightness 500cd/m2&700cd/m2 500cd/m2&700cd/m2 500cd/m2&700cd/m2 700cd/m2
Resolution 1920*1080 1920*1080 1920*1080 3840*2160
Power supply AC100-240V/50-60Hz
Sleep mode 0.5W
Max comsumption 180W 200w 220w 350w
Net weight 20kg 25kg 28kg 40kg
Working Temp 0-40℃
Working Humidity 10-90%
Operation 7x24hrs
Life >60,000hrs
Warranty Standard one year without artificial damage,can be extended to 3 years,lifelong maintenance

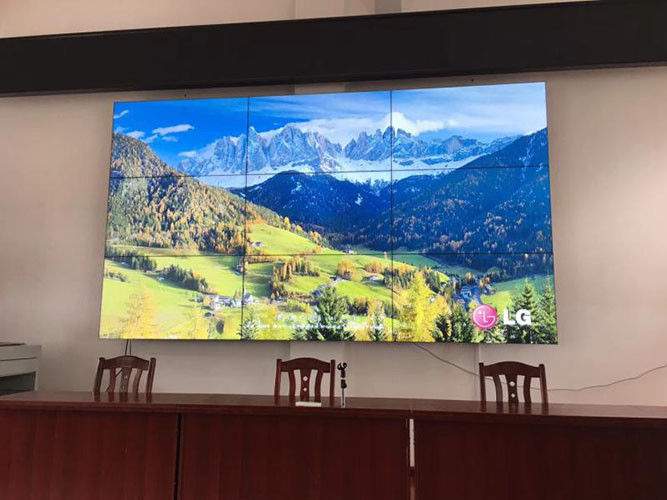

Seamless Small Bezel 46" 48" 50" 55" 1920x1080 DID LCD Video Wall For TV Station And Shop 0

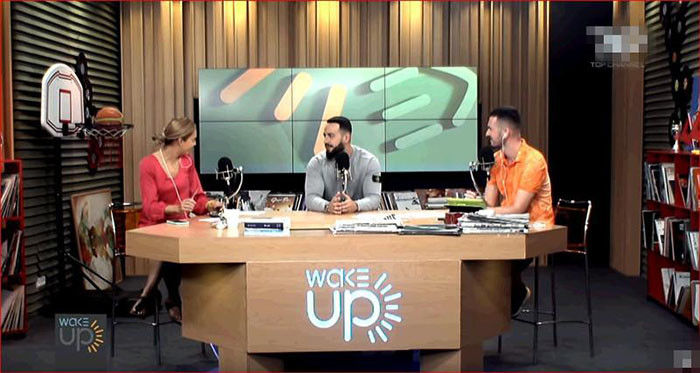

Seamless Small Bezel 46" 48" 50" 55" 1920x1080 DID LCD Video Wall For TV Station And Shop 1

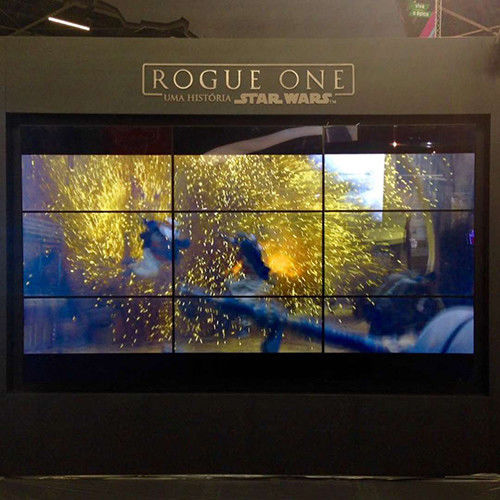

Seamless Small Bezel 46" 48" 50" 55" 1920x1080 DID LCD Video Wall For TV Station And Shop 2



Our Service:

1.All parts from us warranty time is 12 months .
2. We guarantee that each unit is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
3. During the warranty period, we can repair or replace the defective unit for free, after the warranty time, we repair the defective unit and charge part cost.
4.When you receive the package, please open and check it before signing, if it's damaged, ask a "Damage proof" from the delivery company.
5.Any query,please contact us by email or Trade Manager, emails will be responsed within 12 working hours
