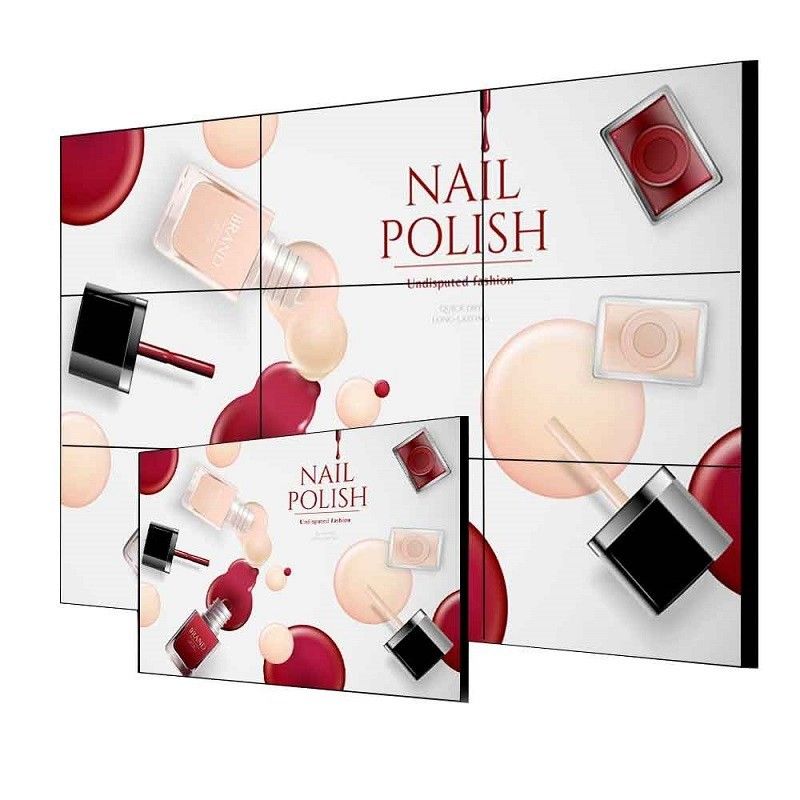

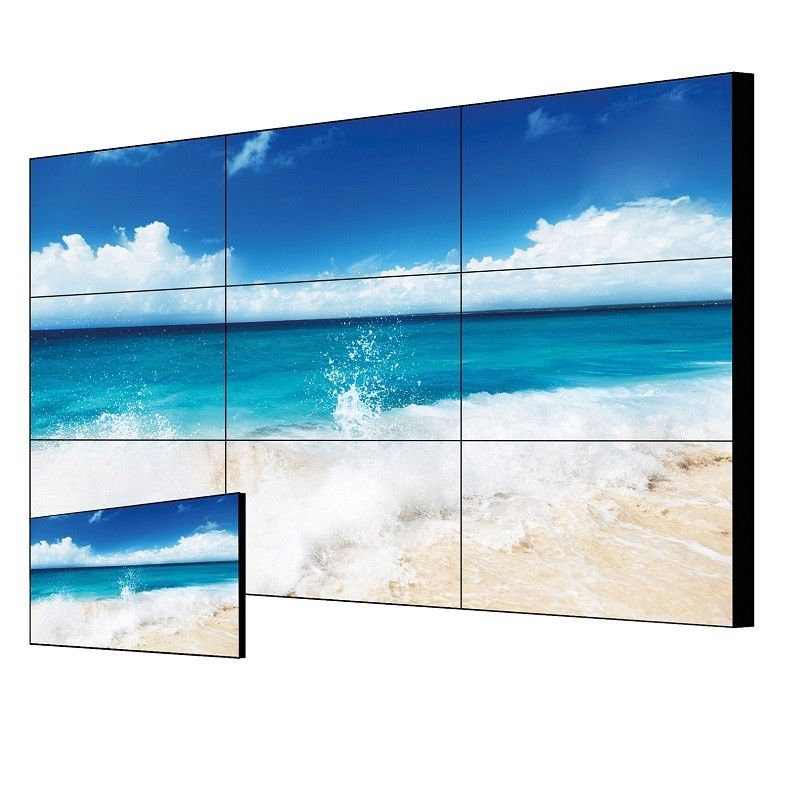

55 Inch Indoor Bracket 450cd/Sqm Wall Mounted Digital Signage Lcd TV Screen

Basic Information
Place of Origin: China
Brand Name: YD LCD
Certification: FCC,UL,ISO9001
Model Number: WM Series
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood Case with Foam Protect
Delivery Time: 8-10 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 units per week
Application: Indoor Contrast Ratio: 3000:1
Brightness: 450cd/Sqm Lifetime: 60000hours
High Light:

450cd/Sqm Wall Mounted Digital Signage

,

FCC Wall Mounted Digital Signage

,

NTSC Lcd TV Screen

55inch Indoor Wall mouted Bracket Frame cabinet 450cd/sqm Mounted Digital Signage Lcd TV Screen


LCD TV Screen Quick Details:

1. Samsung/LG original panel LCD video wall in resolution of 1920*1080
2. Super narrow bezel of 0.88mm 3.5mm and brightness of 450nits
3. Random installation support like 2*2, 3*3, 4*4, 4*5 etc.
4. To be installed on the wall or stand on the floor, can be with floor standing cabinet or stand bracket with your own decoration
5. Front-maintenance bracket also on option
6. Full screen dispalying and each screen displaying different content support, also random screen combination display full screen also support
7. 1.5M length HDMI cable, 1.5M length Lan cable, 1.8M length power cable and software to be provided for free.
8. Processor and matrix on option.
9. To be widely used in shopping mall, office, monitoring system etc.




Technical Parameter:

Metal Frame Material Metal
Dimensions 1029.2*583.8*112.5mm 1023.98*578.57*134.2mm 1213.5*684.3*122mm
Bezel Width(Total) 7.5mm 5.5mm 3.9mm
Net weight 18.5KG 20KG 30KG
LCD Panel Panel brand Kontech Samsung Samsung
Screen Diagonal 46inch 46inch 55inch
Pixel Pitch(WxH) 0.53025x 0.53025mm 0.630x0.630mm
Color Temprature 10000K
Display Area(WxH) 1029.2*583.8mm 1023.98*578.57mm 1213.5*684.3mm
Aspect Ratio 16 :9
Contrast(Typical) 3500:1
Resolution (H x V) 1920 X 1080
Brightness(Typical) 700cd/m2 500cd/m2 500cd/m2
Display Colors 16.7M(8bit)
Response Time(Typical) 8ms 8ms 8ms
View Angle 178°/178° 178°/178° 164/164°
Operating Life Time ≥50,000hours
Interface HDMI 1x HDMI interface input, support 1080P
DVI 1x DVI digital signal input, support 1080P
VGA 1x VGA analog signal input, support 1080P
CVBS IN 2x video input, support NTSC, PAL & SECAM.
USB For software updating, HD base map function
RS232 A serial port ring out controls A, adopt 568B standard
RS232 A serial port ring out controls computer
Feature 1. Ultra-narrow frame(3.5mm), enjoy seamlessly visual experience.
2. Native resolution up to 1920×1080, viewing angle up to 178°.
3. Built-in 3D noise reduction technology
4. Embedded 3D color separation unit.
5. High reliability, support non-stop work for 24 hours, suitable to use as monitor.
6. Flicker free, Less radiation, Less heat release, no lead, mercury and other harmful substances.
7. Particular block design support multiple art combination. Maximum support(15×15).
8. Low power consumption, standby <3W.
9. Integrated multi-channel video signal source, Support HDMI, DVI, VGA, CVBS etc. and USB video playback.
Power Supply AC Power Range 100V-240V
Working Temperature 0~50℃
Working Humidity 10~90% RH
Accessories Power Cable YES
Remote Controller YES
Wall-mounted bracket TBD
OSD Language YES: Chinese, English, etc.
Package Hard Carton
Warranty YES,one year warranty. During this period, any defective happen due to supplier issue, Kontech offer all necessary parts free of charge.


Features:

  • Native resolution up to 1920×1080, viewing angle up to 178°.
  • Ultra-narrow frame , enjoy seamlessly visual experience.
  • Built-in 3D noise reduction technology
  • Embedded 3D color separation unit.
  • High reliability, support non-stop work for 24 hours, suitable to use as monitor.
  • Flicker free, less radiation, less heat release, no lead, mercury and other harmful substances.
  • Particular block design support multiple art combination. Maximum support(15×15).
  • Low power consumption, standby <3W.
  • Integrated multi-channel video signal source, Support HDMI, DVI, VGA, CVBS etc. and USB video playback.

Application:

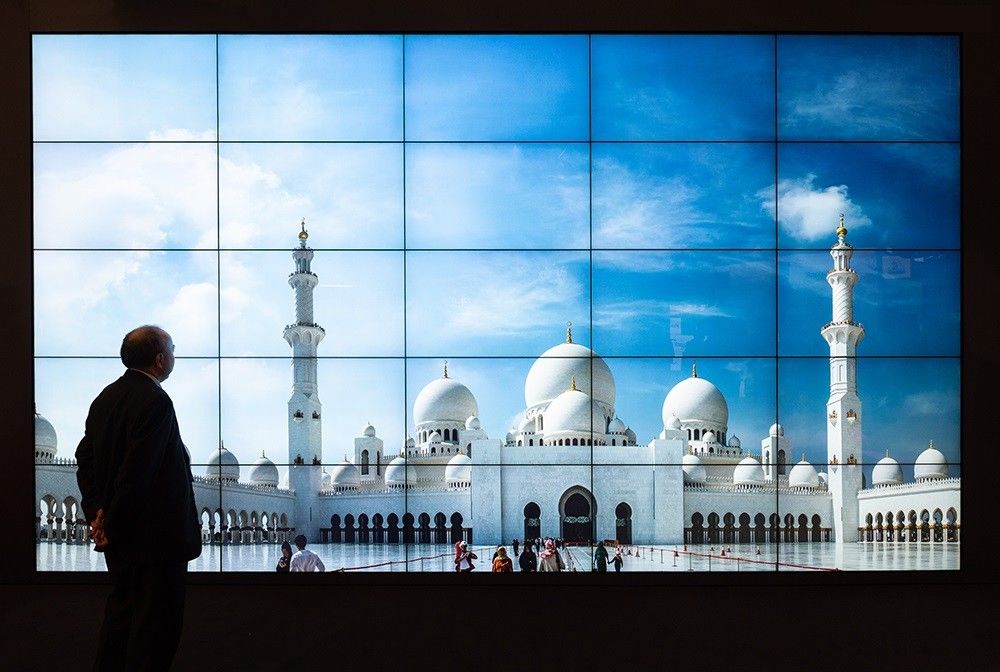

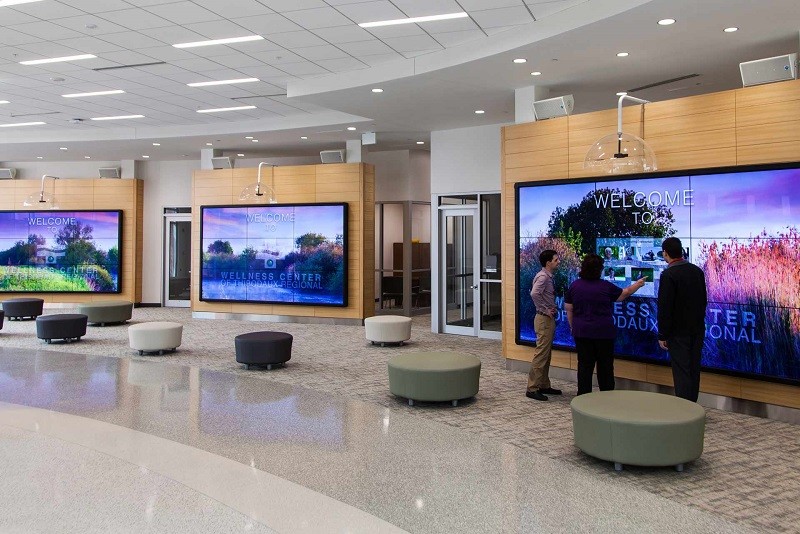

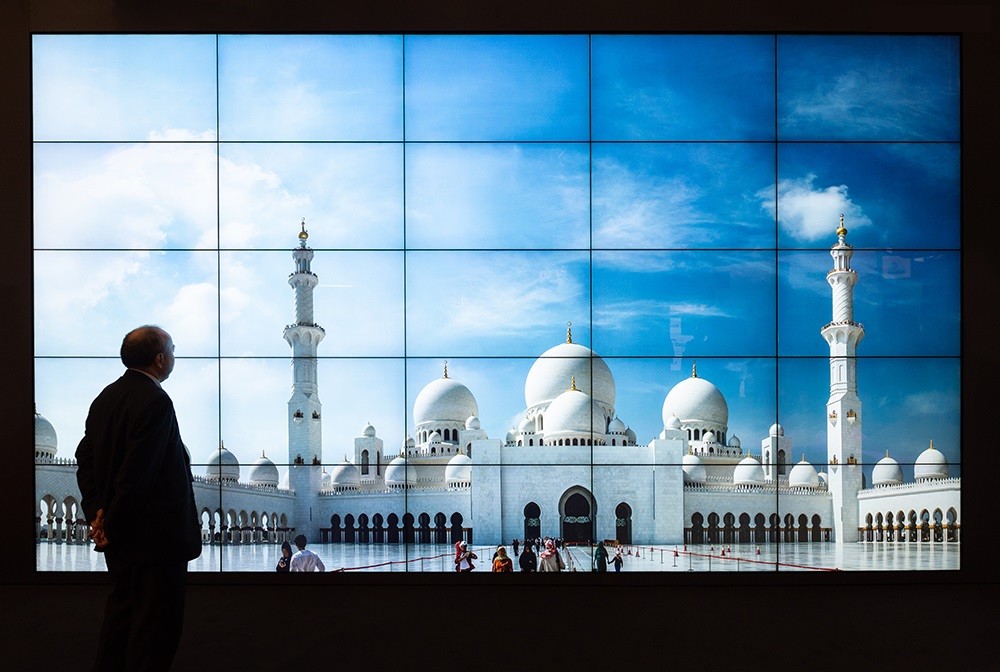

The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public



55 Inch Indoor Bracket 450cd/Sqm Wall Mounted Digital Signage Lcd TV Screen 0
55 Inch Indoor Bracket 450cd/Sqm Wall Mounted Digital Signage Lcd TV Screen 1






Our Service:
1.All parts from us warranty time is 12 months .
2. We guarantee that each unit is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
3. During the warranty period, we can repair or replace the defective unit for free, after the warranty time, we repair the defective unit and charge part cost.
4.When you receive the package, please open and check it before signing, if it's damaged, ask a "Damage proof" from the delivery company.
5.Any query,please contact us by email or Trade Manager, emails will be responsed within 12 working hours
