| Place of Origin: | China |
|---|---|
| Brand Name: | Yida LCD |
| Certification: | CCC, RoHS, CE, FCC, UL |
| Model Number: | LCD Advertising Display |
| Minimum Order Quantity: | 1 set |
| Price: | $350 - $950 per set |
| Packaging Details: | Plywood Case |
| Delivery Time: | 1-15 working days |
| Payment Terms: | T/T, Western Union, L/C, D/A |
| Supply Ability: | 10,000 sets/month |
| LCD Size: | 43'' | Screen Size: | 644mmx45.5mmx1820mm |
|---|---|---|---|
| Touch Panel: | Capacitive Touch Screen | Resolution: | 1920*1080 |
| Color: | Black, White, Customization | Color Gamut: | NTSC 72% |
| Brightness: | 400 Nits | Viewing Angle: | 178°/178° |
| Interface Type: | USB | Built In: | Loud Speakers |
| Seapker: | 5W*2 | Operating System: | Android OS, Window OS |
| Application: | Indoor | Warranty: | 1-3 Years |
| High Light: | 400 Nits LCD Advertising Totem,Floor Stand LCD Advertising Totem,1920*1080 LCD Digital Signage Kiosk |
||
LCD Digital Signage Floor Stand LCD Advertising Totem 43 Inch Android WiFi Player Display Kiosk
Freestanding LCD Screen Parameters
| Operating System | Android 6.0.1 | ||
| LCD Panel | Screen Size | 43"Bar Type(BOE/LG Display) | |
| Resolution | 1920*1080(Full HD) | ||
| Panel Interface | LVDS 2CH | ||
| Brightness | 400nit(Conter 1 Point,Typ.) | ||
| Contrast Ratio | 1200:1(Typ.) | ||
| View Angle(CR>10) | 178°(H)/178°(V) | ||
| Color Gamut | NTSC 72% | ||
| Backlight | LED | ||
| Android Board | Chipset | RK3288(ROCKCHIP) | CPU Speed:Corted-A9@1.6GHz |
| Number of cores:4(Quad) | |||
| GPU:PowerVR SGX544MP@500MHz | |||
| OS:Android 5.1 or 7.0 | |||
| Storage | RAM(DDR) | 2GByte(Optional: 1GByte) | |
| ROM(eMMC) | 16GByte(Optional: 8GByte) | ||
| External Mamory | Optional | ||
| Network | Wi-Fi&Bluetooth | 802.11a/b/g/n(Dual Band 2.4G/5G)/BT 4.0 | |
| 2G/3G/4G | Optional | ||
| Touch panel | Capacitive Touch Screen | Optional | |
| I/O port | USB1(2.0)/USB2(2.0) | ||
| HDMI Output(HDMI-J) | |||
| TF Card Holder | |||
| Ethernet(RJ-45) | |||
| Wi-Fi Antenna | |||
| 4G Antenna | |||
| SIM Card Holder | |||
| Speaker | 5W*2 | ||
| Operation | Power Consumption | 70W(Typ.) | |
| Power Source | AC 100-240V/50-60Hz | ||
| Operating Temperature | 0-50ºC |
||
Digital LCD Kiosk Descriptions
1. Cloud Management System
Just need connect with network, display contents can be managed through cloud server remotely, all in one place.
2. 1080P HD Screen, Truly Show Every Color
4. Customized Function
More features for you to choose.

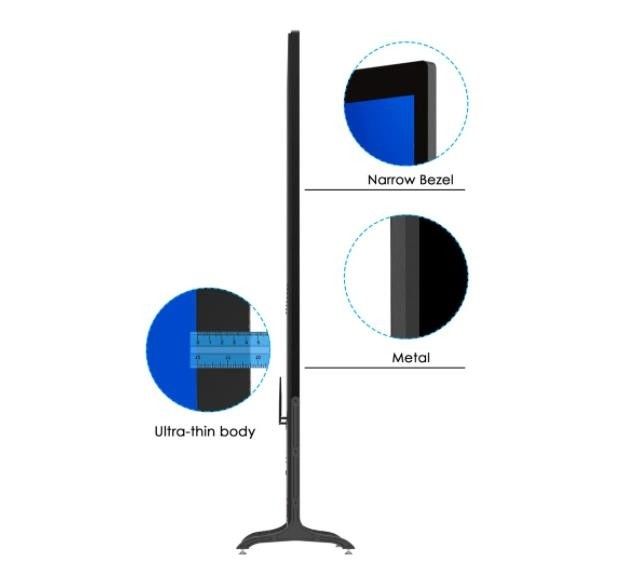

5. Product Size
6. Intelligent Split Screen
One screen for multiple purpose, free to choose different areas of display content, videos, pictures, text partiton play, there are several models for optional.
LCD Display Packing
Advertising LCD Player Applications
LCD Factory Quality Control
Shenzhen Yida Technology Co., Ltd located in Shenzhen,Guangdong covering 3,000 square meters which is one of leading manufacturer specialized in LCD Video Wall, Indoor Digital Signage and Touch Standing Kiosk Screen about 6 years experience ! Our products have passed CE/ RoHS/FCC/ CCC certificates. Customers are growing all over the world such as North America,South America,South Africa,North Africa,Southeast Asia, Euro etc.
We aims to provide every customer reliable quality and excellent after-sale service. Win-win and long-term cooperation is Yida's eternal goal!
